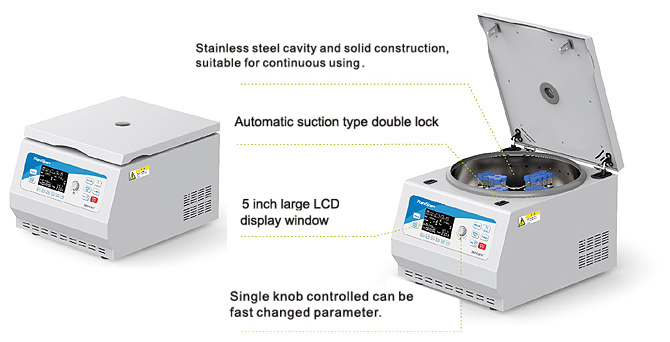

TopSpin Air-Cooled lower speed centrifuge

TOPSCIEN Topspin bench centrifuge is suitable for extraction of medical products, blood bank, clinical trial and of blood serum,plasma, body fluids and biological specimen in biology laboratory

Feature:

USE advance and reliable infineon vector current drive control system, The RPM . RCF and timing can be controlled accurately

The aperational parameters showed and set in 5 inch large LCD display window dearly.

Brushless variable frequency motor free of maintenance,speed range 100-6000rpm. Accuracy ±15rpm;

Speed and RCF increment is 10rpm/1Oxg

Operational time seting:1-9Hours/1-99Minutes/1-59 Seconds three modes available . Accuracy ±1 Second

Sort Spin(Flash),Press the button and can be reached the fast&convenient centrifuging,and stock the last operational parameters automatic.

High strength material for machine and rotor with corrosion-resistant,good sealing preformance and autoclavable;stainless steel chamber strong and durable

The automatic suction type double lock with quiet and safety, speed upor speed down shown in real time on the LCD display meet all kinds of requirements .

Single knob for setling and changing the operational parameters fastly.

The lid include the over-speed,over-current, over-voltage protection and imbalance system ensure the machine operated safety,sound alert after operating or error,the LED display show the corresponding error code

Ventilation cooling system and excellent air heat exchange technolagy which will be reduced the rotor temperature ensure the sample undamaged sound alert and automatic open the led after the rotor stops.

It include the spacer later outside chamber for absorbing the noise reducing the vibration;



Technical data:
Technical data
Power supply
AC110V/AC230 50~60Hz
Power consumption drive
450W
Max Capacity
480ml(15mlx36)
Max.speed rpm
300-6000r/min
Max.RCF[xg]
5150xg
Interference suppression
EN61326-1:2003/EN61000-3-2:2006
Display
5 inch large LCD display
Motor
Brushless variable frequency motor free of maintenance
Time setting Range
1s-9h
Max.Acceleration time
10s
Max.Deceleration time
15s
at23℃ ambient temperature

Basket/swing rotor 100mlx4

Basket/swing rotor 50mlx4
Basket/swing rotor 50mlx8
Basket/swing rotor 15mlx24
Basket/swing rotor 15mlx32
Basket/swing rotor 3ml/5mlx48
Basket/swing rotor 3ml/5mlx64
Basket/swing rotor 3ml/5ml/7mlx72
4x2x96microplate /2x2x96 deep well platewing rotor
angle rotor 15mlx12

########

Order information:
Rotor.No.
Cat.No.
Volume
capacity(ml×tube)
Max. RCF(Xg)

Max. speed rpm(r/min)
Tube type
8011680
TC-TopSpin
Air-Cooled lower speed centrifuge
8011680-1
TC-TS01
50x4
5000
4980
PP round / cone base with cover
29.5x116mm
8011680-2
TC-TS02
100x4
5000
4980
PP round with cover 38x102
38x114mm
8011680-3
TC-TS03
50x8
4000
4600
PP round / cone base with cover
29.5x116mm
8011680-4
TC-TS04
10ml/15mlx24
4000
3040
Vacuum blood collection tube
16X100mm
8011680-5
TC-TS05
10ml/15mlx32
4000
3040
Urinary sediment tube
16x104mm
8011680-6
TC-TS06
3ml/5mlx48
4000
3040
Round / cone basetube
16x121mm
8011680-7
TC-TS07
3ml/5mlx64
4000
3040
Vacuum blood collection tube
13x75/100mm
8011680-8
TC-TS08
3ml/5ml/7ml x72
4000
3040
Vacuum blood collection tube
13x75/100mm
8011680-9
TC-TS09
4x2x96/2x2x96
3500
2190
4x2x96/microplate or 2x2x96/deep well plate
8011680-10
TC-TS10
15mlx12
6000
5150
PP round / cone base with cover
16x121mm
